Steel/Aluminum Shell · Full Tonnage Range · Melting & Holding
0.35T-30T output per hour, suitable for large-scale smelting operations, featuring hydraulic tilting, open-type furnace body and good stability.
With an output of 0.1T-3T per hour, it is suitable for small-scale smelting operations and features reducer-driven tilting.
KGPS/IGBT Options · Stable & Energy-Efficient · Parallel/Series Configurations
The complete machine has a 40% reduction in overall volume, takes up less space, requires no reactive power compensation cabinet, outputs a waveform close to a sine wave, and achieves an overall energy saving of 10%-25%.
Suitable for large-batch smelting of steel and scrap steel, with controllable failure rate, long-standing technical accumulation in circuit technology, and excellent surge and impact resistance.
Horizontal/Vertical · Efficient Heating · Precision Temperature Control
Forging of round steel bar stock, metal smelting, heat treatment of shaft parts, long-term large-batch continuous production, the workpiece is cylindrical. Magnetic lines of force pass through the workpiece in parallel.
Heating of steel plate / steel strip / flat steel and reheating for plate rolling, with magnetic lines of force passing perpendicularly through the workpiece.
Cables · Induction Coils · Control Boards · Spare Parts
Dual internal and external circulation continuously draws heat away from heat-generating components, stabilizes the temperature of cooling water and guarantees continuous smelting of electric furnaces.
During the smelting stage, the furnace cover is closed, and flue gas forms a spiral airflow at the furnace opening, which wraps the smoke and dust to prevent them from overflowing and diffusing. It integrates three major functions of airtight heat preservation, smoke and dust capture and overturning into one.
The flexible conductive component between the power cabinet and the furnace body, which is used to transmit large medium-frequency current, is a core wearing part of steel-shell / aluminum-shell medium-frequency furnaces. It shall adopt a hollow water-cooled structure.
Graphite crucible is a conductor. The crucible body directly generates heat through induced eddy current, and the heat is conducted inward to melt metal materials, which is suitable for smelting non-ferrous metals and precious metals.

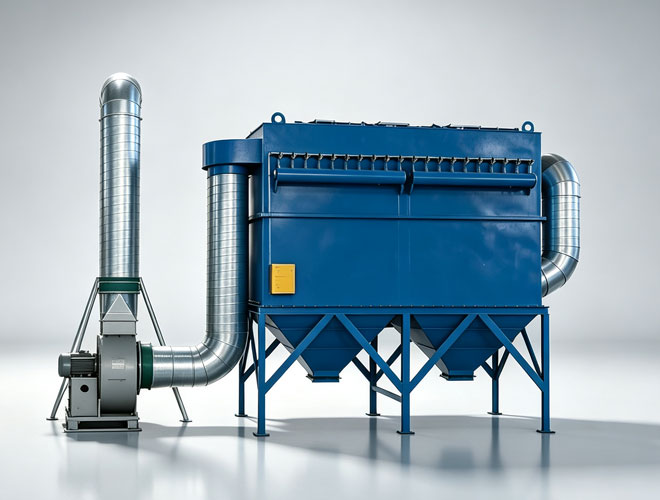

Soot and dust generated during the production process is collected, purified and discharged in compliance with relevant standards. This practice meets the requirements of environmental impact assessment, improves the working environment of the workshop, and the collected metal dust can be recycled and reused.
Convert the high voltage of the power grid into the AC voltage required by the rectifier side of medium-frequency power supply (common secondary voltages: 380V, 660V, 750V, 950V), and ensure that the medium-frequency power supply can reach its rated power.
